รายละเอียดสินค้า:
การชำระเงิน:
|
| จำนวนหัวดาย: | 3 ชุด | คุณสมบัติ: | ผลผลิตที่เร็วขึ้น |
|---|---|---|---|
| ความเข้ากันได้ของวัสดุ: | PE, PP, PVC, PA, PC, PS, EVA | ดูเส้นลาย: | ใช่ |
| ช่วงปริมาณผลิตภัณฑ์: | 5มล. – 100ลิตร | ระบบมุก: | ใช่ |
| ระบบ: | ระบบควบคุมการปะทะ MOOG | พิมพ์: | สลับประเภทด้วย IML |

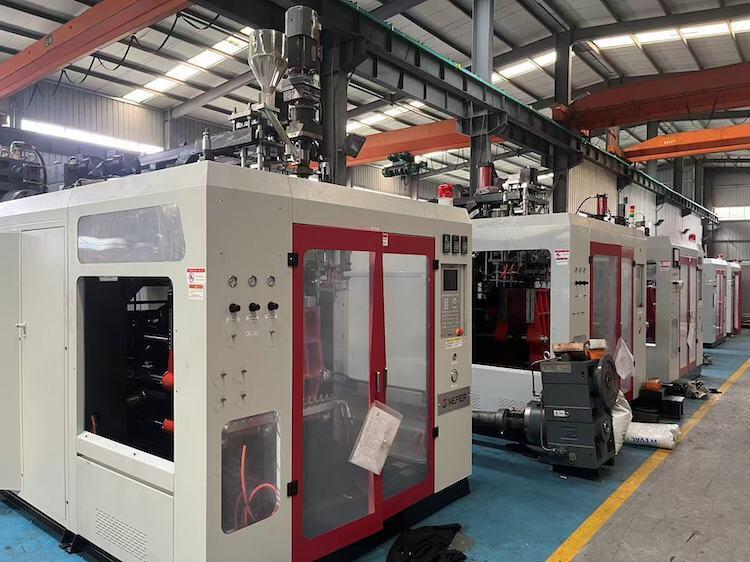

The MP100FD extrusion blow molding machine is specifically engineered to produce plastic hollow products ranging in size from 5ml to 10 liters. Its versatile design allows it to handle a variety of materials including PE, PP, PVC, PA, PC, PS, and EVA.
This high-efficiency blow molding machine features a multi-head system that enhances productivity by enabling multiple products to be molded simultaneously. Additionally, it incorporates energy-saving hydraulic control technology, ensuring reduced power consumption during operation.
With stable extrusion performance and intelligent PLC control, the MP100FD offers reliable and precise manufacturing capabilities. The combination of advanced automation and user-friendly interface makes it an ideal choice for efficient and consistent plastic product production.
| Parameter | Specification |
|---|---|
| Product Volume Range | 5ml - 100 liters |
| Compatible Materials | PE, PP, PVC, PA, PC, PS, EVA |
| Die Heads | 3 sets |
| Machine Dimensions (W*L*H) | 3.5 * 5.6 * 2.65 meters |
| Machine Weight | Approximately 15 tons |
| Clamping Force | 200 KN |
| Mold Opening Stroke | 240-640 mm (adjustable) |
| Plate Stroke | 750 mm |
| Maximum Mold Size | 700 * 420 mm |
| Screw Specifications | 100mm (L/D 26), 75mm*2 (L/D 24*2), 25mm*2 (L/D 22*2) |
| HDPE Output Capacity | 218 kg/hour |
| Total Power Consumption | 210 KW |
| Hydraulic Motor Power | 31 KW |
| Air Pressure Requirement | 0.6 - 1 MPa |
| Cooling Water Consumption | 1000 liters/minute |
Packaging Sector: Detergent bottles, chemical containers, lubricant bottles, cosmetic bottles, and food containers
Industrial Applications: Tool boxes, plastic barrels, storage tanks, automotive air ducts, and industrial hollow parts
Household Products: Chairs, toys, plastic jars, and various home storage products
